Silent1 Normal Lift
It combines high-speed performance with sectional door robustness, making it suitable for both exterior façades and internal climate separation.
Prices
Alu-glazed sections
Acrylic glass 2x3 mm per linear meter £ 51,00
RAL color on request
2-sides p/m² £ 59,40
How to order
Silent1 high lift is supplied as a project-based kit.
Download the Silent1 high lift order Excel file.
Fill in all required dimensions and configuration details.
Send the completed file to info@iddparts.nl.
You will receive confirmation and delivery planning.
Our technical team will verify specifications before final confirmation to ensure correct configuration.

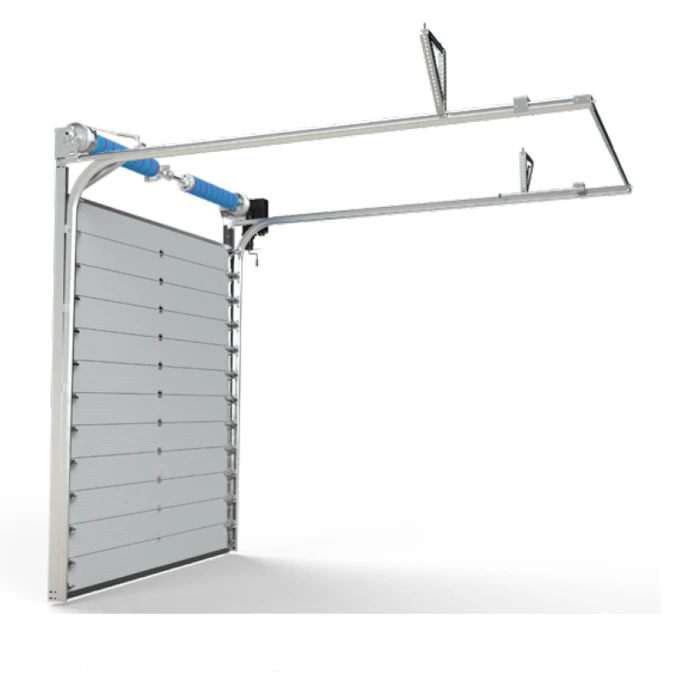

Construction and technical details
Key technical characteristics:
Door speed up to 1.5 m/s
40 mm insulated aluminium panels
Optional glazed sections (up to four full-width sections)
Specially developed side hinges and 3” rollers
Balanced torsion spring system with patented spring filler
Integrated IP67 light curtain
Wind load class 3
The rail system is slim and requires minimal installation space
Benefits for installers
Enables installers to optimise planning and maintain control over delivery times.
Supplied as complete modular kit
Efficient packaging for transport
Easy bolt-based assembly
Clear full-text programming display
No complex parameter coding required
Easy access to service components
Fast delivery times
CE documentation
Silent1 High Lift complies with all applicable CE regulations and standards. Download the relevant documentation below.
