Designed for extended headroom applications

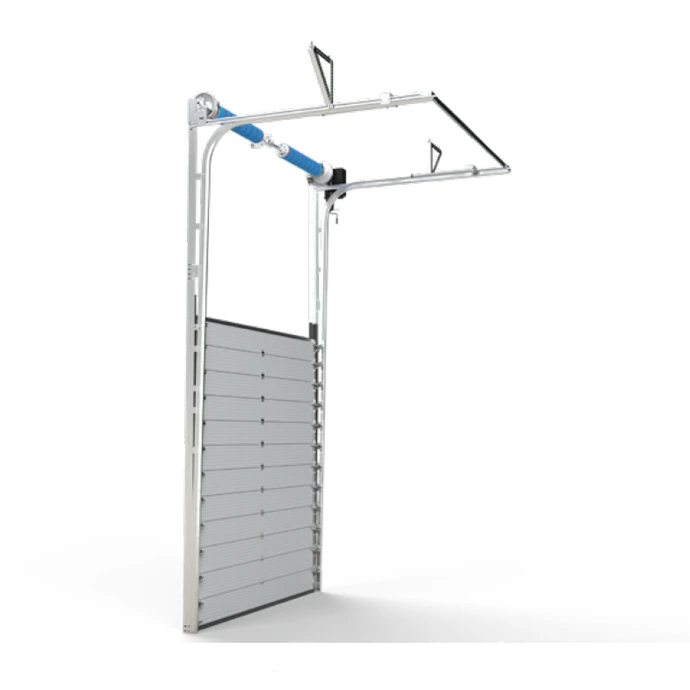

Silent1 High Lift

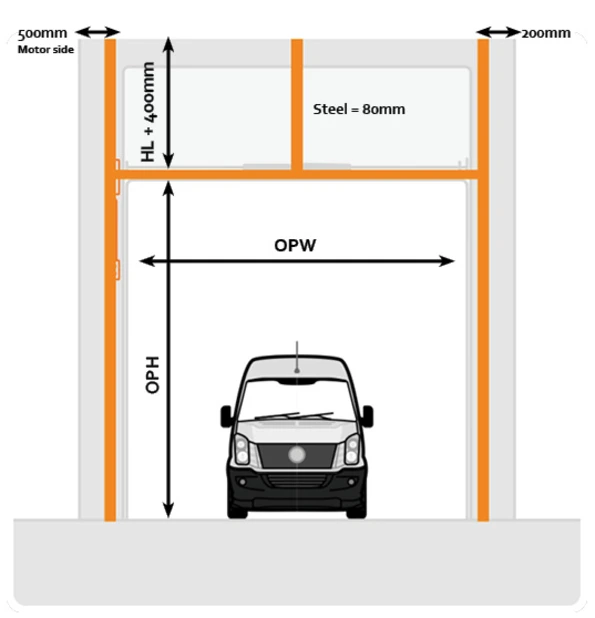

The Silent1 high lift configuration is developed for buildings with additional headroom above the opening. The door first travels vertically before transitioning into the horizontal tracks, allowing optimal use of available space.

Request information →

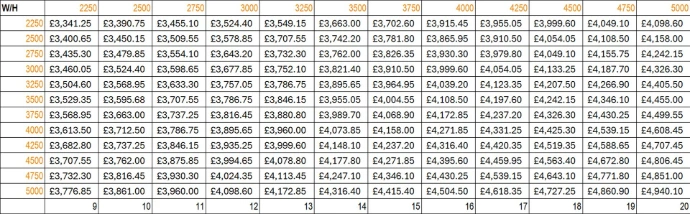

Prices

Alu-glazed sections

Acrylic glass 2x3 mm per linear meter £ 51,00

RAL color on request

1-side p/m² £ 29.70

2-sides p/m² £ 59,40

How to order

Silent1 high lift is supplied as a project-based kit.

Download the Silent1 high lift order Excel file.

Fill in all required dimensions and configuration details.

Send the completed file to info@iddparts.nl.

You will receive confirmation and delivery planning.

Our technical team will verify specifications before final confirmation to ensure correct configuration.

Performance and construction

Silent1 high lift offers the same silent and energy-efficient performance as the standard system, combined with the flexibility of extended lifting height.

Key technical characteristics:

3” steel rail system

Specially developed hardware components that contribute to the exceptionally silent operation of the door

1 1/4” tube shaft

40 mm insulated aluminium panels

Micro-rib profile, standard RAL9006

Torsion springs up to 100,000 cycles

Frequency-controlled operator with soft start and soft stop

The balanced system reduces strain on the motor and moving components, extending the lifespan of the entire installation.
