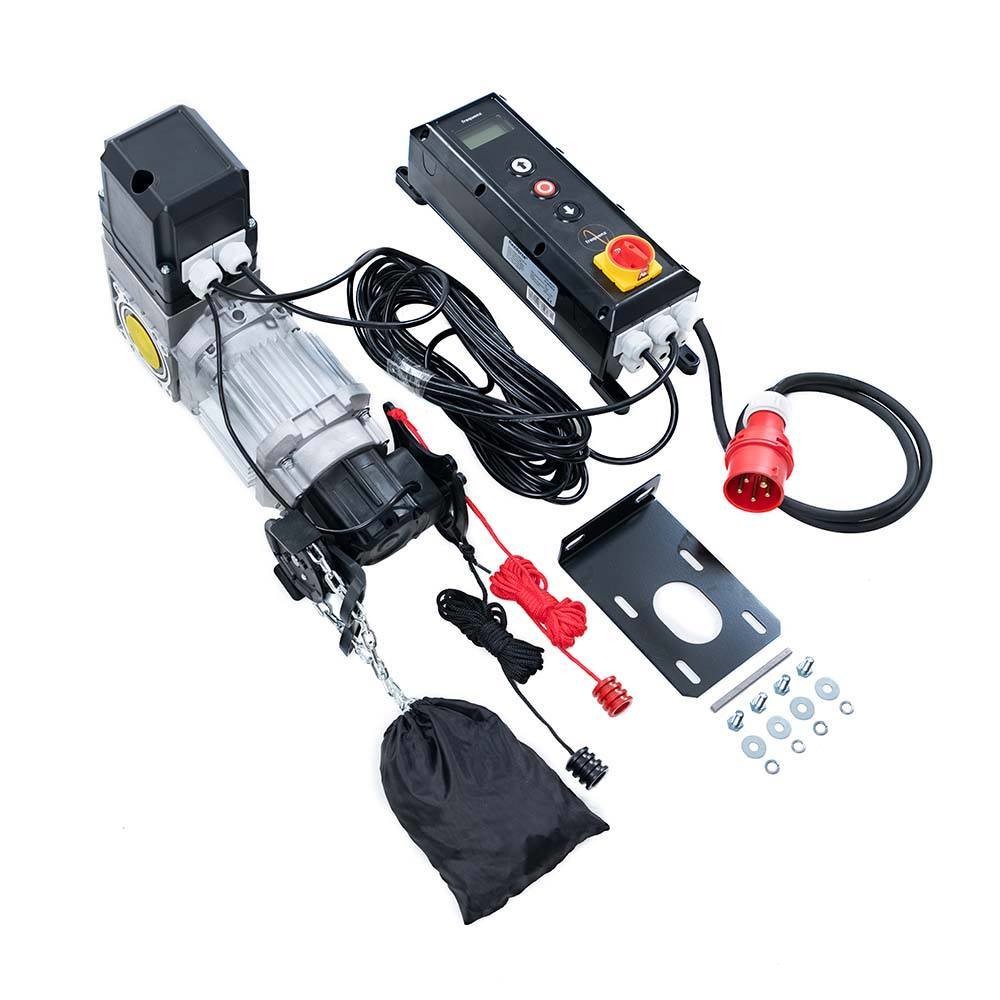

Frequenz 100•400•30•25.4 (alt: 100Nm•400V•30rpm.25.4mm)
Torque of 100Nm for doors up to approx. 28 square meters
Supply voltage 400 volts 3 phases
Fixed speed of 30 rpm
For doors with a shaft of 25.4 mm or 1 inch
Emergency operation with hand chain (no spring break device necessary)
Control unit with back•lit LCD Display
Text menu•driven programming (no codes)
Programming in 4 languages
Digital electronic limit switches
Connection for 2 safety devices, additional push buttons, remote control, etc.
3 potential•free relays, freely programmable (e.g. for traffic lights)
24 V, 750 mA DC power supply for external components
Cable length 7 meters
Available as an optional extra
Plug in receiver 868Mhz 3 channels
Remote control transmitters 868 Mhz 4•channel and 15•channel
Set of connection cables 11 meters between control unit and drive
Frequenz brochure EN
Torque of 100Nm for doors up to approx. 28 square meters
Supply voltage 400 volts 3 phases
Fixed speed of 30 rpm
For doors with a shaft of 25.4 mm or 1 inch
Emergency operation with hand chain (no spring break device necessary)
Control unit with back•lit LCD Display
Text menu•driven programming (no codes)
Programming in 4 languages
Digital electronic limit switches
Connection for 2 safety devices, additional push buttons, remote control, etc.
3 potential•free relays, freely programmable (e.g. for traffic lights)
24 V, 750 mA DC power supply for external components
Cable length 7 meters
Available as an optional extra
Plug in receiver 868Mhz 3 channels
Remote control transmitters 868 Mhz 4•channel and 15•channel
Set of connection cables 11 meters between control unit and drive
Frequenz brochure EN
| Brand | Frequenz, Universal, Frequenz |
| Weight | 17,00 kg |
